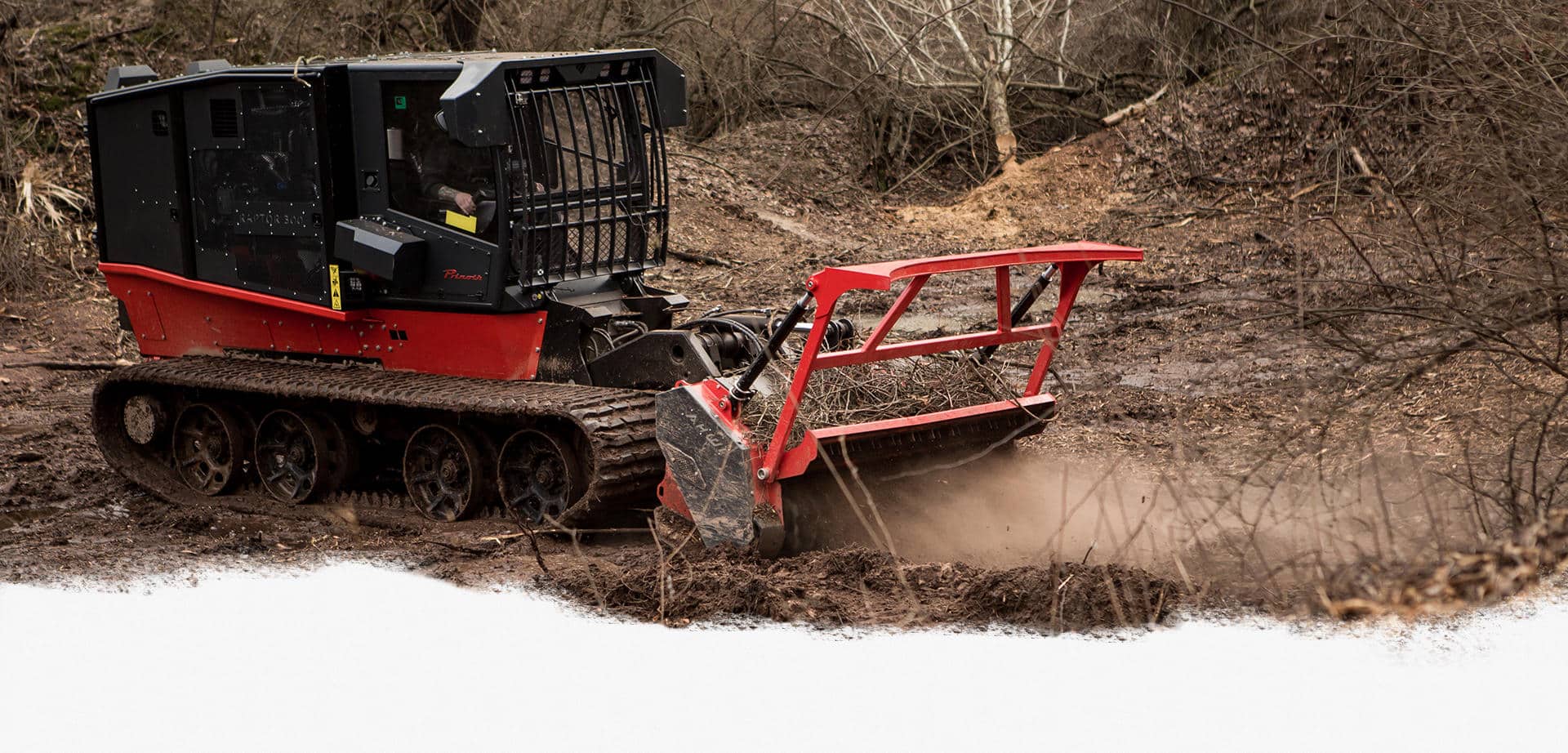

Raptor 300R

All terrain mobility

The RAPTOR 300r is designed for mulching operations on rough and challenging kinds of terrain.

Its undercarriage adapts perfectly to any ground type, be it swampy, uneven, or steep. The extremely low ground pressure that it exerts prevents it from sinking into soft soil. Its sturdy rubber track means that it can even cross roads without damaging the asphalt. The RAPTOR 300r is thus ideal for working underneath power cables, on pipelines, and on roads. It sets new standards in traditional site clearance.

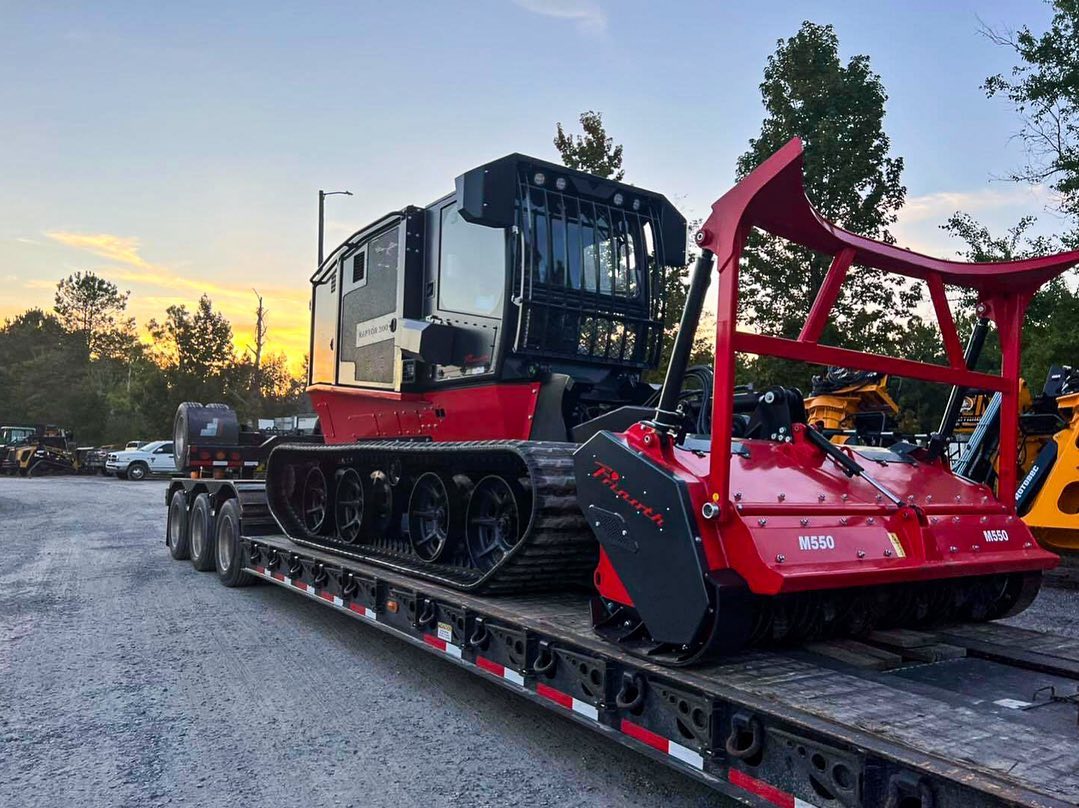

The RAPTOR 300r combines unbeatable efficiency with unparalleled mobility, enabling you to work reliably and productively. The M550m mulcher is fitted as standard to the carrier vehicle for mulching work in very demanding terrain.

Technical Data

Power 202 kW / 275 HP
Engine CAT C7.1
Maximum speed [km/h] 10
Weight with/without mulcher M550 14560 kg (32099 lbs)/12560 kg (27690 lbs)
Width of grouser shoes 700 mm (27.56 in)
Ground pressure g/cm² 700 mm (27.56 in) plates 265 (0.58 lbs)
Gradeability frontal/sideways 45°/30°
Vehicle dimensions incl. mulcher (length/width/height) 7235 mm (282.165 in) / 2450 mm (95.55 in) / 2890 mm (112.71 in)
Note Technical changes made during the course of further development are reserved.

Your advantages at a glance


The mechanical drive of the RAPTOR 300r transfers the total power to the mulcher without any loss, giving it a huge lifting height.


Reliability and durability are our top priorities. The double protection given to the mechanical drive guarantees reliable working.


Whether it’s on soft ground, steep terrain, or off road, the rubber track of the RAPTOR 300r knows no obstacles and even navigates asphalt roads with minimal effort.


We place the utmost importance on driver and vehicle safety. All of our safety systems are certified and doubly protected.
