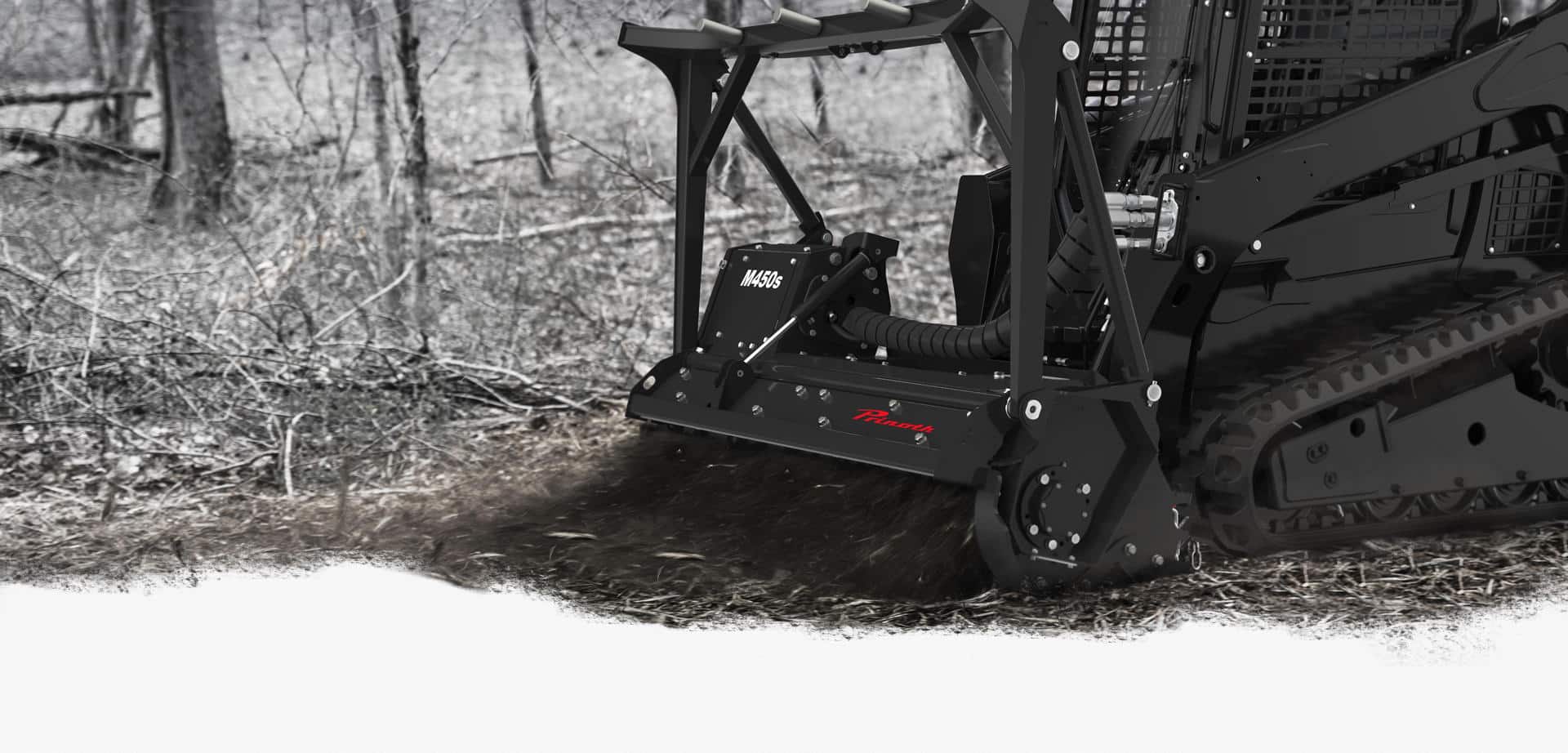

The M450s is designed for the compact loader segment like skid steers or other hydraulic driven carrier vehicles from 70-180 hp.

Developed for a range of carrier vehicles from 70-180 hp and a volume flow between 22.5-66 GPM (85-250 l/min), the M450s-1900 is a compact and powerful head for a diversity of mulching applications. It’s also available in the working width of 63 in (1600 mm – M450s-1600) and 87 in (2200 mm – M450s-2200).

With the feature “Plug and Mulch”, the M450s is ready for simple implementation on any skid steer loader make and model. Hydraulic hoses with standard fittings are included in the package and already delivered from factory. The M450s gets its enormous power from a 115 cc Rexroth hydraulic motor with high-pressure variable displacement. A new-cogged belt drive transfers it to the rotor.

The rotor combines the BCS (Bite Control System) with two types of cutting tools. Whether steel knives- or carbide teeth, the BCS-Rotor is best balanced for less wear on bearings and high speed, meaning high productivity and perfect finishing. With the well-tried BCS-Rotor System and its cutting tools, the operator will not only get a professional working result, but also a pleasurable working experience.

Furthermore, it guarantees a perfect visibility to the ground for a good and safe line of sight to the working area and the machine. The point of gravity is close to the carrier, therefore, it is easier to handle and provides less tipping or roll over danger. For maximum safety, the M450s is equipped with anti-slippery stripes on the top of the housing and with two steps for a safe access to the carrier.

Technical Data

Power range [hp] 70 - 180
Volume flow [l/min / gpm] 85 - 250 / 22.5 - 66
Working width [mm / in] 1600 / 63 - 1900 / 74.8 - 2200 / 87
Total width [mm / in] 1900 / 74.8 - 2200 / 86.6 - 2500 / 98
Hydraulic motor Variable HD displacement piston motor 115 / 170 cc
Tool quantity 42xUPTs / 32xBCS - 48xUPTs / 40xBCS - 56xUPTs / 48xBCS
Weight* [kg / lbs] 1140 / 2513 - 1210 / 2668 - 1380 / 3042
Note Technical changes made during the course of further development are reserved. *Weight information refers to the configuration without push bar and without counter blades installed on the flap.

Your advantages at a glance

Shredding Quality

Highest shredding quality of the mulched materials.


Unique efficiency due to powerful hydraulic drive.
